🌱 Grow Guide 种植指南

Complete cultivation guide for the K99 Eclipse 328 LED Grow Light. 4-stage growing parameters from seedling to harvest.
K99 Eclipse 328 LED植物灯完整种植指南。4阶段生长参数，从幼苗到收获。
适用于 K99 Eclipse 328 LED 植物生长灯的完整种植指南。从幼苗到收获的4阶段种植参数。

1. Light Spectrum — Wavelengths & Ratios / 光谱 — 波长与比例

Cannabis uses photosynthetically active radiation (PAR) from 400–700 nm. Two key photoreceptor families drive growth:
大麻利用400–700 nm的光合有效辐射（PAR）。两大光受体家族驱动生长：

Chlorophyll a/b
叶绿素a/b — absorption peaks at ~430 nm (blue) and ~662 nm (red)
吸收峰在~430nm（蓝光）和~662nm（红光）
Cryptochromes & Phytochromes
隐花色素和光受体 — control photomorphogenesis: stretch, branching, flowering timing
控制光形态健成：伸长、分枝、开花时机

Vegetative营养期 Stage Spectrum 营养期光谱

Parameter 参数	Recommendation 建议	Rationale 原理
Dominant spectrum主光谱	Cool-white ~5000K–6500K冷白 ~5000K–6500K	High blue (440–470 nm) keeps internodes tight, prevents stretch高蓝光（440–470nm）使节间紧凑，防止徒长
Blue (400–500 nm)蓝光（400–500nm）	25–35% of total PPF占总PPF的25–35%	Drives chlorophyll b, stomatal opening, compact morphology驱动叶绿素b、气孔开放、紧凑形态
Green (500–600 nm)绿光（500–600nm）	20–25% of total PPF占总PPF的20–25%	Penetrates deeper into canopy, improves lower-leaf photosynthesis穿透更深冠层，改善下层叶片光合作用
Red (600–700 nm)红光（600–700nm）	35–45% of total PPF占总PPF的35–45%	Core photosynthetic driver; balance against blue to prevent stretch核心光合驱动；平衡蓝光以防止徒长
Far-red (700–750 nm)远红光（700–750nm）	5–10% of total PPF (optional)占总PPF的5–10%（可选）	Emerson enhancement effect — boosts PSII/PSI synergy爱默生增强效应——提升PSII/PSI协同作用
UV (380–400 nm)	0–1% (optional)0–1%（可选）	May increase secondary metabolite production; use sparingly可能增加次生代谢产物；谨慎使用

Key ratio: In veg, target a R:B (red:blue) ratio of roughly 1.2–1.5:1.
关键比例：营养期目标R:B红蓝比约1.2–1.5:1

Flowering开花期 Stage Spectrum 开花期光谱

Parameter 参数	Recommendation 建议	Rationale 原理
Dominant spectrum主光谱	Warm-white ~2700K–3500K暖白 ~2700K–3500K	Higher red ratio triggers flowering response更高红光比例触发开花响应
Blue (400–500 nm)蓝光（400–500nm）	10–15% of total PPF占总PPF的10–15%	Maintains resin production and trichome integrity维持树脂生产和腺毛完整性
Green (500–600 nm)绿光（500–600nm）	15–20% of total PPF占总PPF的15–20%	Critical for lower canopy penetration对下层冠层穿透至关重要
Red (600–700 nm)红光（600–700nm）	50–65% of total PPF占总PPF的50–65%	Maximizes photosynthetic efficiency during flower最大化开花期光合效率
Deep red (660 nm)深红光（660nm）	15–25% of total PPF占总PPF的15–25%	Aligns with chlorophyll a absorption peak; drives bud density对齐叶绿素a吸收峰；驱动花芽密度
Far-red (700–750 nm)远红光（700–750nm）	8–15% of total PPF占总PPF的8–15%	Critical: Phytochrome conversion (Pfr→Pr) accelerates flowering; Emerson effect boosts yield 5–15%关键：光敏色素转换加速开花；爱默生效应增产5–15%
UV (380–400 nm)	0.5–2% (optional)0.5–2%（可选）	May increase THC/CBD % via stress response; use cautiously可能通过应激反应增加THC/CBD%；谨慎使用

Key ratio: In flower, target a R:B ratio of roughly 4–6:1 (heavily red-shifted).

2. PPFD Targets by Growth Stage / 各阶段PPFD目标

PPFD = Photosynthetic Photon Flux Density (μmol/m²/s). Canopy-level averages measured at the top of the tallest cola. A PPFD = 光合光子通量密度（μmol/m²/s）。冠层平均值在最高花蕾顶部测量。PAR meter (Apogee MQ-500, Li-190R) is essential.

Standard Targets (ambient CO₂ ~400–450 ppm) 标准目标

Growth Stage 阶段	Target PPFD 目标PPFD	Acceptable Range 可接受范围	Notes 备注
Seedling幼苗 / Clone幼苗 / 克隆	150	100–200	Low intensity critical; dim to ~15–20% or raise to 30–36"低光强关键；调暗至~15–20%或升至30–36英寸
Early Veg营养早期 (wk 1–3)营养早期 (wk 1–3)	300	200–400	Ramp gradually from 150→300从150逐渐升至300 over first week第一周从150逐渐升至300
Late Veg营养晚期 (wk 4+)营养晚期 (wk 4+)	500	400–600	Prepare for transition准备过渡; start training准备过渡；开始训植
Early Flower开花早期 (wk 1–3)开花早期 (wk 1–3)	750	600–850	Transition过渡期 over 5–7 days; do not shock5–7天过渡；勿造成冲击
Mid Flower开花中期 (wk 4–6)开花中期 (wk 4–6)	850	700–900	Peak bulking; monitor for tacoing/bleaching峰值膨大期；监测卷叶/漂白
Late Flower开花晚期 (wk 7–9)开花晚期 (wk 7–9)	700	600–800	Reduce to avoid stress; terpene preservation降低以避免应激；保留萜烯
Flush冲洗期 / Final 7–10d冲洗/最后7–10天	500	400–600	Reduce intensity降低强度; plants stop uptaking at full rate降低强度；植物不再全速吸收

High-Intensity Targets (CO₂-enriched, 1,200–1,500 ppm) 高光强目标

Growth Stage 阶段	Target PPFD 目标PPFD	Notes 备注
Mid Veg (with CO₂)营养中期（加CO₂）	600–700	Begin CO₂ supplementation mid-veg营养中期开始补充CO₂
Early Flower开花早期	850–1,000	Use higher end if canopy is healthy冠层健康时使用上限
Mid Flower开花中期 (peak)开花中期（峰值）	900–1,100	Maximum photosynthetic efficiency zone最大光合效率区
Late Flower开花晚期	800–1,000800–1,000	Reduce 10–15% from peak从峰值降低10–15%
Max safe ceiling最大安全上限	1,150	Above this → photoinhibition, bleaching, terpene degradation超过此值→光抑制、漂白、萜烯降解

Eclipse 328 PPFD Mapping / Eclipse 328 PPFD映射

Hanging Height 悬挂高度	Coverage 覆盖面积	Dimmer Setting调光器	Canopy PPFD 冠层PPFD
30" (76 cm)	4×4 ft	20–30%	~150–250 (seedling)约150–250（幼苗）
24" (61 cm)	4×4 ft	40–60%	~350–500 (veg)约350–500（营养期）
18" (46 cm)	4×4 ft	60–80%	~600–800 (early flower)约600–800（开花早期）
14" (36 cm)	4×4 ft	85–100%	~850–1,050 (flower + CO₂)约850–1,050（开花+CO₂）
12" (30 cm)	3×3 ft	100%	~1,100–1,200 (intensive, CO₂ mandatory)约1,100–1,200（强化，需CO₂）

Always measure with a PAR meter.始终使用PAR计测量。 Wall reflectivity (95% white/mylar raises edge PPFD 20–30%) and canopy density affect these estimates.

3. DLI (Daily Light Integral) Targets / DLI目标

DLI = PPFD × light hours × 3,600 ÷ 1,000,000 (mol/m²/day).
DLI = PPFD ×光照小时 × 3,600 ÷ 1,000,000（mol/m²/天）。

Growth Stage 阶段	DLI Target（mol/m²/d）	Photoperiod 光周期	Equivalent PPFD 等效PPFD
Seedling幼苗 / Clone幼苗 / 克隆	6–10	18/6	93–154 μmol/m²/s93–154 μmol/m²/s93–154 μmol/m²/s93–154 μmol/m²/s
Early Veg营养早期	15–25	18/6	231–386
Late Veg营养晚期	25–35	18/6	386–540
Early Flower开花早期	30–38	12/1212/1212/1212/12	694–880
Mid Flower开花中期 (ambient CO₂)开花中期（环境CO₂）	30–38	12/1212/1212/1212/12	694–880
Mid Flower开花中期 (CO₂ 1,200 ppm)开花中期（CO₂ 1,200 ppm）	38–48	12/1212/1212/1212/12	880–1,111
Late Flower开花晚期	25–35	12/1212/1212/1212/12	579–810
Flush冲洗期	15–25	12/1212/1212/1212/12	347–579

Critical DLI Rule / 关键DLI规则: Saturation point (ambient CO₂): ~40 mol/m²/day. Saturation point (1,200 ppm CO₂): ~55–60 mol/m²/day. Beyond these → no yield increase, only stress risk.

4. Photoperiod 光周期 (Light Schedules) 光周期

Stage 阶段	Schedule	Total Light/Day	Notes 备注
Seedling幼苗	18/6 (or 24/0)	18–24 hr	18/6 recommended for root rest建议18/6以利根系休息
Vegetative营养期	18/6	18 hr	Industry standard. 20/4 possible but marginal benefit.行业标准。20/4可行但收益有限。
Transition过渡期	18/6 → 12/1212/1212/1212/12 (instant)18/6 → 12/1212/1212/1212/12（立即切换）	—	Flip overnight. No gradual transition needed.隔夜切换。无需逐步过渡。
Flowering开花期	12/1212/1212/1212/12	12 hr	Non-negotiable for photoperiod strains. Any light leak → herm risk.光周期品种不可改变。任何漏光→雌雄同体风险。
Late flower fade开花晚期褪色	12/1212/1212/1212/12 → 11/13 (last 7–10d)→ 11/13（最后7–10天）	11–13 hr	Optional. Mimics autumn; may speed ripening.可选。模拟秋季；可能加速成熟。
Autoflower自动开花品种	18/6 or 20/418/6或20/4	18–20 hr	No dark period requirement. 20/4 can increase yield 5–10%.无暗期要求。20/4可增产5–10%。

Best Practices最佳实践 / 最佳实践:

Light leaks: Zero tolerance. Pitch-black during dark period.
Dawn/dusk simulation: Program 15-min ramp-up/down via WiFi app. Reduces plant shock.
Consistency: Lights on/off at exactly the same time daily (±1 min).

5. VPD (Vapor Pressure Deficit) 蒸气压差

VPD measures the drying power of the air — directly controls transpiration rate and nutrient uptake.
VPD衡量空气的干燥能力——直接控制蒸腾速率和养分吸收。

Growth Stage 阶段	Optimal VPD (kPa)	Equiv. RH @ 75°F	Equiv. RH @ 80°F	Equiv. RH @ 85°F
Seedling幼苗 / Clone幼苗 / 克隆	0.4–0.8	70–80%	70–80%	75–85%
Early Veg营养早期	0.6–1.0	65–75%	62–72%	60–70%
Late Veg营养晚期	0.8–1.2	55–65%	50–62%	48–60%
Early Flower开花早期	1.0–1.4	48–58%	45–55%	42–52%
Mid Flower开花中期	1.2–1.6	40–50%	38–48%	35–45%
Late Flower开花晚期	1.3–1.6	38–48%	35–45%	32–42%
Final 2 weeks最后2周	1.4–1.8	30–40%	28–38%	25–35%

Temperature Targets 温度目标

Stage 阶段	Day Temp (°F/°C)	Night Temp (°F/°C)	Notes 备注
Seedling幼苗	75–80°F (24–27°C)	68–72°F (20–22°C)	Warmer for root development较高温度利于根系发育
Veg	75–82°F (24–28°C)	65–72°F (18–22°C)	Steady growth; avoid large temp swings稳定生长；避免大幅温度波动
Early Flower开花早期	75–80°F (24–27°C)	64–70°F (18–21°C)	Night drop encourages anthocyanins夜间降温促进花青素生成
Mid Flower开花中期 (w/ CO₂)	78–85°F (26–29°C)	65–72°F (18–22°C)	Higher temp ok with elevated CO₂CO₂升高时可接受较高温度
Late Flower开花晚期	72–78°F (22–26°C)	60–65°F (16–18°C)	Cooler temps preserve terpenes较低温度保留萜烯
Flush冲洗期	70–76°F (21–24°C)	58–65°F (14–18°C)	Cool finish enhances color and resin低温收尾增强色彩和树脂

VPD Quick Reference — Corrective Actions / VPD快速参考 — 纠正措施

Problem 问题	Symptom 症状	VPD Issue	Fix 解决
Slow growth, wilting生长缓慢，萎蔫	Leaves drooping, edges curling up叶片下垂，边缘卷起	VPD too high (air too dry)VPD过高（空气太干）	Raise RH (humidifier), lower temp提高RH（加湿器），降低温度
Slow growth, mold risk生长缓慢，霉菌风险	Leaves drooping, stem weak, PM spots叶片下垂，茎弱，白粉病斑	VPD too low (air too wet)VPD过低（空气太湿）	Lower RH (dehumidifier), raise temp, increase airflow降低RH（除湿机），提高温度，增加气流
Leaf tacoing叶片卷曲	Leaf edges curling upward, crispy叶缘向上卷曲，变脆	PPFD too high AND/OR VPD too highPPFD过高和/或VPD过高	Reduce light intensity + raise RH降低光强+提高RH
Guttation吐水现象	Water droplets on leaf edges叶缘有水珠	VPD too low + high transpirationVPD过低+高蒸腾	Lower RH slightly, increase airflow稍微降低RH，增加气流

6. CO₂ Enrichment / CO₂补充

Cannabis is a C3 plant. At elevated CO₂ (1,200–1,500 ppm), the plant can tolerate higher PPFD, increase photosynthetic rate by 30–50%, and shorten flower time by 7–14 days.

Condition 条件	CO₂ Level (ppm)	When to Use 使用时机
Ambient (no supplement)环境（不补充）	400–450400–450	Standard grows, PPFD ≤ 600 μmol/m²/s标准种植，PPFD ≤ 600 μmol/m²/s
Low supplement低量补充	800–1,000800–1,000	PPFD 600–900 μmol/m²/s, better yieldPPFD 600–900 μmol/m²/s，更高产量
High supplement (commercial)高量补充（商业级）	1,200–1,5001,200–1,500	PPFD 900–1,100 μmol/m²/s1,100 μmol/m²/s, sealed room requiredPPFD 900–1,100 μmol/m²/s1,100 μmol/m²/s，需密封房间
Maximum最大值	1,5001,500	Diminishing returns above 1,500; toxic >2,000 ppm超过1,500后收益递减；超过2,000 ppm有毒

CO₂ Schedule / CO₂时间表:

Lights ON only (CO₂ uptake depends on photosynthesis)
Turn off CO₂ 15–30 min before lights OFF
Only use from mid-veg through mid-flower. Stop in last 2–3 weeks.
Sealed room required for high CO₂ — exhaust fans purge CO₂

Eclipse 328 + CO₂ Synergy: Without CO₂, dim to ~60–70% to avoid >900 μmol/m²/s. With CO₂ at 1,200 ppm, run at 90–100%, maximizing every diode.

7. Mounting Height & Light Distribution 安装高度与光分布

Stage 阶段	Distance from Canopy	PPFD Effect
Seedling幼苗s / Clones	30–36 in (76–91 cm)	Achieves 100–200 μmol/m²/s达到100–200 μmol/m²/s
Vegetative营养期	18–24 in (46–61 cm)	Achieves 400–600 μmol/m²/s达到400–600 μmol/m²/s
Early Flower开花早期	14–18 in (36–46 cm)	Achieves 700–900 μmol/m²/s达到700–900 μmol/m²/s
Mid/Late Flower开花晚期	12–16 in (30–41 cm)	Achieves 900–1,100 μmol/m²/s1,100 μmol/m²/s (with CO₂)

Eclipse 328 CoverageEclipse 328覆盖范围 / 覆盖范围:

Optimal: 4×4 ft (1.2×1.2 m) at 18" height for flower最佳：4×4英尺（1.2×1.2米），高度18英寸开花
Maximum: 5×5 ft (1.5×1.5 m) at 24" height for veg最大：5×5英尺（1.5×1.5米），高度24英寸营养
Intensive: 3×3 ft (0.9×0.9 m) at 12–14" height for high-DLI flower with CO₂强化：3×3英尺（0.9×0.9米），高度12–14英寸高DLI开花+CO₂

Tips for Even PPFD Distribution均匀PPFD分布技巧 / 均匀PPFD分布技巧:

Use 95%+ reflective walls (white paint, Mylar, Orca Film) — recovers 20–30% edge PPFD使用95%+反射墙（白漆、Mylar、Orca Film）—恢复边缘PPFD 20–30%
SCROG net — creates flat, even canopy for uniform PPFDSCROG网—创建平坦均匀冠层以获得均匀PPFD
Rotate pots weekly — mitigates hot/cold spots每周旋转花盆—减少热点/冷点
PAR map — measure PPFD at 9+ grid points and adjust height/anglePAR图—在9个以上网格点测量PPFD并调整高度/角度

8. K99 Eclipse 328 — Specific Recommendations / Eclipse 328专用建议

Parameter 参数	Value 数值
Model 型号	Eclipse 328 Eclipse 328
PPF 光合光子通量	2,600 μmol/s 2,600 μmol/s
Efficiency效率	3.28 μmol/J 3.28 μmol/J
LED TypeLED类型	Samsung LM301H EVO三星LM301H EVO (white) + OSRAM deep red (660 nm)
Control	WiFi + BLE 5.2 smart app
Coverage 覆盖面积	4×4 ft flower / 5×5 ft veg
Power Draw	~793 W (at 100%)

Spectrum Configuration 光谱配置

Vegetative营养期 Profile (18/6):

Channel	Power %	Purpose
White LM301H EVO (~5000K)	80–100%	Blue-rich broad spectrum for compact growth
OSRAM Deep Red (660 nm)	20–30%	Supplement chlorophyll a peak; boost photosynthesis
Resulting PPFD		400–600 μmol/m²/s at 18–24" height

Flowering开花期 Profile (12/1212/1212/1212/12):

Channel	Power %	Purpose
White LM301H EVO (~3000K)	60–80%	Warmer broad-spectrum base for flower
OSRAM Deep Red (660 nm)	60–80%	Primary flower driver — drives bud density
Resulting PPFD		800–1,000 μmol/m²/s at 12–16" height, with CO₂

Smart WiFi Control — Pro Tips / 智能WiFi控制技巧

Sunrise/Sunset dimming: Program 15-min ramp at lights-on/off. Reduces stress, improves morning CO₂ uptake.
Weather simulation: Program 5–10% intensity dip at midday (cloud cover). May trigger mild stress → increased terpene production.
End-of-flower fade: Reduce intensity降低强度 10–15%/week over last 2–3 weeks. Signals plant to allocate energy to resin and ripening.
Dew point avoidance: Set rule to dim 10–20% if canopy temp exceeds 88°F (31°C).

9. Quick Reference — 4-Stage Parameter Table / 快速参考 — 4阶段参数表

Parameter 参数	Seedling幼苗幼苗	Vegetative营养期营养生长期	Flowering开花期开花期	Late Flower开花晚期晚期开花
PPFD (μmol/m²/s)	100–200	200–600	600–1,000 (w/ CO₂)	600–800
DLI (mol/m²/day)	6–10	15–35	30–48 (w/ CO₂)	25–35
VPD (kPa)	0.4–0.8	0.8–1.2	1.0–1.6	1.3–1.8
Day Temp 日间温度	75–80°F (24–27°C)	75–82°F (24–28°C)	75–85°F (24–29°C)	72–78°F (22–26°C)
Night Temp 夜间温度	68–72°F (20–22°C)	65–72°F (18–22°C)	64–72°F (18–22°C)	60–65°F (16–18°C)
Humidity 湿度 (RH%)	70–80%	55–65%	40–58%	30–45%
Photoperiod 光周期光周期	18/6	18/6	12/1212/1212/1212/12	12/1212/1212/1212/12
Light Height 灯高度	30–36" (76–91cm)	18–24" (46–61cm)	12–18" (30–46cm)	12–16" (30–41cm)
Dimmer Setting调光器调光	15–30%	40–70%	60–100%	60–85%
CO₂ (ppm)	400–450 (ambient)	400–800	1,200–1,5001,200–1,500	400–800
Spectrum 光谱	Blue-heavy 偏蓝光	Blue-heavy 偏蓝光	Red-heavy 偏红光	Red-heavy 偏红光
R:B Ratio 红蓝比	1:1	1.2–1.5:1	4–6:1	5:1

Installation Steps 安装步骤

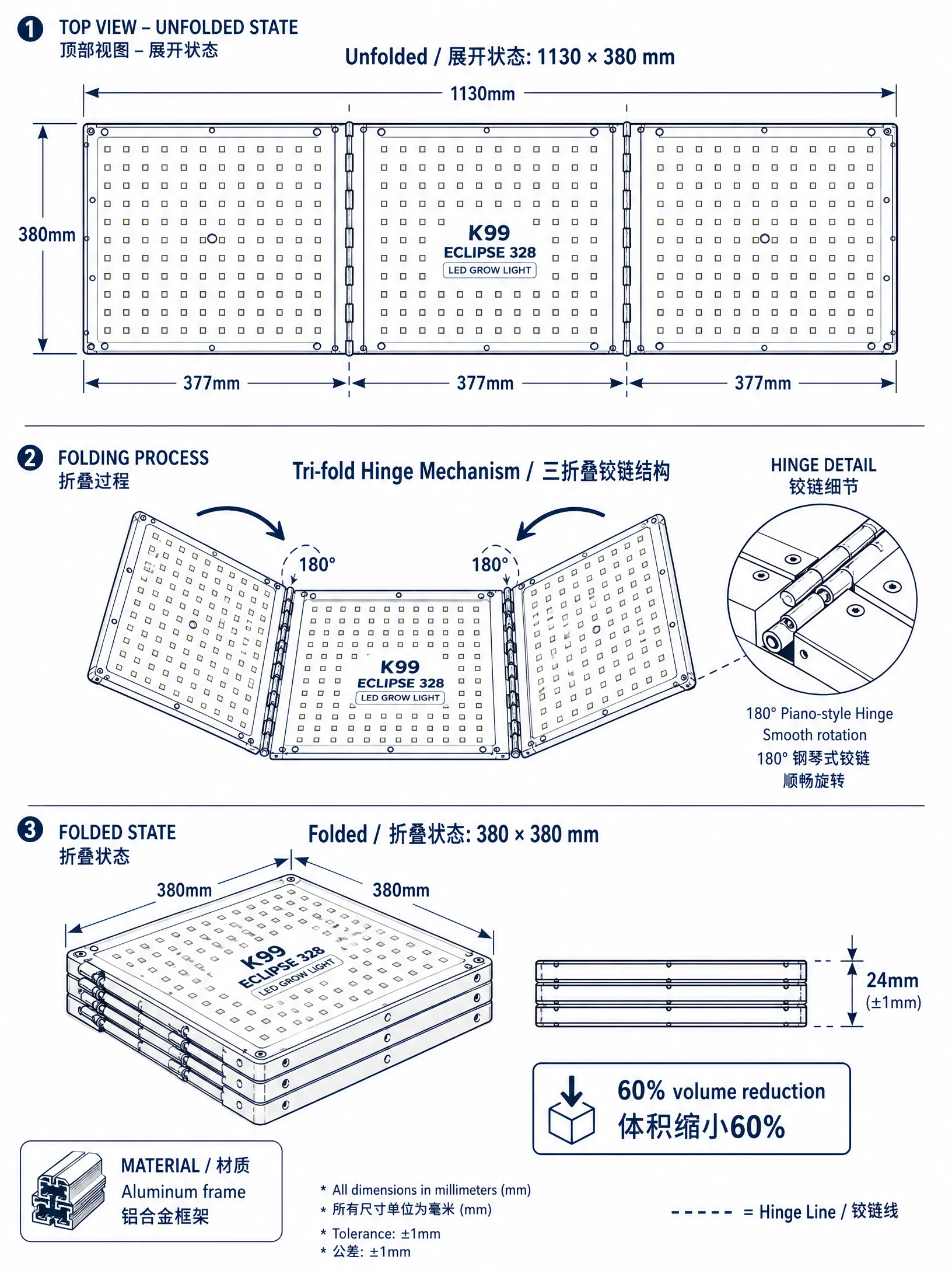

Unbox & Unfold / 开箱展开: Remove from packaging. Unfold the tri-fold panel — it clicks into place with magnetic latches. No tools required.
从包装中取出。展开三折叠面板——磁性卡扣自动锁定到位。无需工具。
Mount Hanging Hardware / 安装悬挂组件: Attach the 4 included carabiner clips to the corner mounting points. Connect to adjustable rope hangers (included).
将4个登山扣连接到角落安装点。连接可调节绳索吊架（随附）。
Set Height / 设定高度: For seedlings, start at 30–36" above canopy. Adjust rope hangers to desired height using the ratchet mechanism.
幼苗阶段从冠层上方30–36英寸开始。使用棘轮机构调节绳索吊架至所需高度。
Connect Power / 连接电源: Plug the external LED driver into a 120V/240V outlet. Connect the driver output cable to the panel's DC input port.
将外置LED驱动电源插入120V/240V插座。将驱动输出线连接到面板的DC输入端口。
WiFi Setup / WiFi设置: Download the K99 app. Power on the light, then follow in-app pairing instructions (BLE 5.2 auto-discovery).
下载K99应用程序。开灯后按照应用内配对说明操作（BLE 5.2自动发现）。
Initial Dimming / 初始调光: Set dimmer to 20% for seedlings. Use the app or onboard dial to adjust intensity.
幼苗阶段将调光器设为20%。使用应用程序或机载旋钮调节强度。
Verify PPFD / 验证PPFD: Use a PAR meter (Apogee MQ-500 recommended) to measure canopy-level PPFD. Adjust height/dimmer accordingly.
使用PAR计（推荐Apogee MQ-500）测量冠层PPFD。相应调整高度/调光。

Optimization Tips 优化技巧

Light Distribution 光分布优化

Reflective walls / 反光墙面: Use 95%+ reflective material (white paint, Mylar, Orca Film). This recovers 20–30% edge PPFD.
使用95%+反射率材料（白色涂料、Mylar、Orca Film）。可回收20–30%边缘PPFD。
SCROG net / 绿幕网: Create a flat, even canopy so all colas receive uniform PPFD.
创建平坦均匀的冠层，使所有花尖接收均匀PPFD。
Rotate pots weekly / 每周旋转花盆: Compensate for any hot/cold spots in the room.
补偿房间内任何热/冷点的影响。

Smart Control Tips 智能控制技巧

Sunrise/Sunset Ramp / 日出日落渐变: Program 15-min ramp-up/down via WiFi app. Reduces plant shock, improves morning CO₂ uptake.
通过WiFi应用设置15分钟渐亮/渐暗。减少植物冲击，改善早晨CO₂吸收。
EOD-FR Protocol / 日末远红光协议: In the last 15 min before lights-off, boost deep red to 100%. This mimics far-red sunset and can accelerate flowering by 3–7 days.
关灯前最后15分钟将深红光调至100%。模拟远红光日落，可加速开花3–7天。
Cloud Simulation / 云层模拟: Set a 5–10% intensity dip at midday. Some growers report this triggers mild stress response, increasing terpene production.
在正午设置5–10%强度下降。部分种植者报告这触发轻度应激反应，增加萜烯产量。
Late-Flower Fade / 晚期开花渐减: Reduce intensity降低强度 10–15% per week in the last 2–3 weeks. Signals plant to allocate energy to resin and maturation.
最后2–3周每周降低强度10–15%。向植物发出信号，将能量分配给树脂和成熟。

Environmental Synergy 环境协同

CO₂ + High PPFD / CO₂ + 高光强: Only push PPFD above 850 μmol/m²/s when CO₂ is ≥1,200 ppm. Without CO₂, cap at 800.
仅在CO₂ ≥1,200 ppm时将PPFD推至850 μmol/m²/s以上。无CO₂时上限为800。
LED Temperature Compensation / LED温度补偿: LED produces less radiant heat than HPS. Raise ambient temp 2–5°F to achieve optimal leaf temperature (77–82°F).
LED产生的辐射热少于HPS。将环境温度提高2–5°F以达到最佳叶温（77–82°F）。
VPD-First Approach / VPD优先策略: Always calculate VPD using leaf temperature (IR gun), not air temperature. Under LED, leaf is 1–4°F cooler than ambient.
始终使用叶温（红外温度枪）计算VPD，而非气温。LED下叶温比环境低1–4°F。

Troubleshooting 故障排除

Leaf Curling (Taco) 叶片卷曲

Cause / 原因: PPFD too high and/or VPD too high (air too dry)VPD过高（空气太干）. PPFD过高和/或VPD过高（空气太干）。

Fix / 解决: Raise light 2–4", increase humidity, or reduce dimmer 10–15%. 升高灯具2–4英寸，增加湿度，或降低调光10–15%。

Light Bleaching 光漂白

Cause / 原因: PPFD >1,200 μmol/m²/s without CO₂ supplementation. 无CO₂补充情况下PPFD >1,200 μmol/m²/s。

Fix / 解决: Raise light, reduce dimmer, or add CO₂ to 1,200+ ppm. 升高灯具，降低调光，或添加CO₂至1,200+ ppm。

Slow Growth + Wilting / 生长缓慢+萎蔫

Cause / 原因: VPD too high (>1.8 kPa). Stomata closing. VPD过高（>1.8 kPa）。气孔关闭。

Fix / 解决: Increase RH (humidifier), lower temperature, improve airflow. 增加RH（加湿器），降低温度，改善气流。

Mold / Powdery Mildew / 霉菌/白粉病

Cause / 原因: VPD too low (<0.4 kPa). Dew forming on leaves. VPD过低（<0.4 kPa）。叶片结露。

Fix / 解决: Lower RH (dehumidifier), raise temperature, increase airflow to 1–2 m/s at canopy. 降低RH（除湿机），提高温度，增加冠层气流至1–2 m/s。

Stretching / Tall Internodes / 徒长/节间过长

Cause / 原因: Insufficient blue light, or light too far from canopy. 蓝光不足，或灯具距冠层过远。

Fix / 解决: Lower light, increase blue spectrum (use cooler white setting), ensure R:B ratio ≤1.5:1 in veg. 降低灯具，增加蓝光光谱（使用较冷白光设置），确保营养期R:B比≤1.5:1。

WiFi Connection Issues / WiFi连接问题

Cause / 原因: BLE pairing timeout or router interference. BLE配对超时或路由器干扰。

Fix / 解决: Power cycle the light. Ensure phone is within 3m during pairing. Use 2.4GHz network (not 5GHz). 重启灯具电源。确保配对时手机在3米内。使用2.4GHz网络（非5GHz）。

Uneven PPFD / PPFD不均匀

Cause / 原因: Non-reflective walls, light tilted, or canopy not level. 非反光墙面，灯具倾斜，或冠层不平。

Fix / 解决: Add reflective material to walls, level the fixture, use SCROG net to flatten canopy. Map PPFD at 9+ grid points. 在墙面添加反光材料，调平灯具，使用SCROG网平整冠层。在9+网格点映射PPFD。

📊 2025–2026 Parameters Reference 技术参数参考

Consolidating latest LED cannabis cultivation research (2024–2026). Updated with 10 key revisions from Utah State, U. Guelph, and MSU trials.
整合最新LED大麻栽培研究（2024–2026）。基于犹他州立大学、圭尔夫大学和密歇根州立大学试验的10项关键修订。

01 PPFD by Growth Stage / 各阶段PPFD

PPFD = Photosynthetic Photon Flux Density, measured in μmol/m²/s at canopy top. All values assume even canopy distribution (±10% variance).
PPFD = 光合光子通量密度，以梅盖顶部的μmol/m²/s计算。所有数值假设均匀冠幂分布（±10%偏差）。

Standard Targets (ambient CO₂ ~400–450 ppm) 标准目标

Growth Stage 阶段	Target PPFD 目标PPFD	Acceptable Range 可接受范围	Notes 备注
Seedling幼苗 / Clone幼苗 / 克隆	150	100–200	Low intensity critical; dim to ~15–20% 低光强关键；调光至~15-20%
Early Veg营养早期 (wk 1–3)营养早期 (wk 1–3)	300	200–400	Ramp gradually from 150→300从150逐渐升至300
Late Veg营养晚期 (wk 4+)营养晚期 (wk 4+)	500	400–600	Prepare for transition准备过渡
Early Flower开花早期 (wk 1–3)开花早期 (wk 1–3)	750	600–850	Transition过渡期 over 5–7 days
Mid Flower开花中期 (wk 4–6)开花中期 (wk 4–6)	850	700–900	Peak bulking phase峰值膨大阶段
Late Flower开花晚期 (wk 7–9)开花晚期 (wk 7–9)	700	600–800	Terpene preservation保留萜烯
Flush冲洗期 / Final 7–10d冲洗/最后7–10天	500	400–600	Reduce intensity降低强度

High-Intensity Targets (CO₂-enriched, 1,200–1,500 ppm) 高光强目标

Growth Stage 阶段	Target PPFD 目标PPFD	Notes 备注
Mid Veg (with CO₂)营养中期（加CO₂）	600–700	Begin CO₂ supplementation mid-veg营养中期开始补充CO₂
Early Flower开花早期	850–1,000	Use higher end if canopy is healthy冠层健康时使用上限
Mid Flower开花中期 (peak)开花中期（峰值）	900–1,100	Maximum photosynthetic efficiency zone最大光合效率区
Late Flower开花晚期	800–1,000800–1,000	Reduce 10–15% from peak从峰值降低10–15%
Max safe ceiling最大安全上限	1,150	Above this → photoinhibition

Eclipse 328 PPFD Mapping / Eclipse 328 PPFD映射

Hanging Height 悬挂高度	Coverage 覆盖面积	Dimmer Setting调光器	Canopy PPFD 冠层PPFD
30" (76 cm)	4×4 ft	20–30%	~150–250 (seedling)约150–250（幼苗）
24" (61 cm)	4×4 ft	40–60%	~350–500 (veg)约350–500（营养期）
18" (46 cm)	4×4 ft	60–80%	~600–800 (early flower)约600–800（开花早期）
14" (36 cm)	4×4 ft	85–100%	~850–1,050 (flower + CO₂)约850–1,050（开花+CO₂）
12" (30 cm)	3×3 ft	100%	~1,100–1,200 (intensive, CO₂ mandatory)约1,100–1,200（强化，需CO₂）

PPFD Ceiling Values / PPFD天花板值

Condition 条件	Max Usable PPFD / 最大可用PPFD	Source 来源
Without CO₂ (ambient ~400 ppm) / 无CO₂	800 μmol/m²/s800 μmol/m²/s	Bugbee 2024, Utah StateBugbee 2024，犹他州立大学
With CO₂ (1,200 ppm) / 有CO₂	1,100 μmol/m²/s1,100 μmol/m²/s	Bugbee 2024, Utah StateBugbee 2024，犹他州立大学
Absolute maximum (1,500 ppm CO₂) 绝对上限	1,150 μmol/m²/s1,150 μmol/m²/s	Practical ceiling; above → photoinhibition实际上限；超过→光抑制

Above these thresholds, photorespiration increases and net photosynthesis plateaus. Higher PPFD without corresponding CO₂, nutrient, and VPD management wastes energy and risks damage.
超过这些阈值后，光呼吸增加，净光合速率趋于平稳。更高的PPFD如果没有相应的CO₂、营养和VPD管理，只会浪费能源并带来损伤风险。

LED-Specific VPD Correction / LED专用VPD修正

Under full-spectrum LED (low IR/radiant heat), leaf temperature runs 1–4°F cooler than ambient air. This creates a steeper vapor gradient at the leaf surface.
在全光谱LED（低红外辐射热）下，叶温比环境气温低1–4°F。这在叶片表面产生更陡的水蒸气梯度。

Factor 因素	HPS (Traditional)	LED (Eclipse 328)
Leaf temp vs ambient / 叶温vs环境	+5–8°F above ambient比环境高+5–8°F	-1–4°F below ambient比环境低-1–4°F
VPD correction formula / VPD修正公式	Standard VPD charts标准VPD图表	`VPD_actual = VPD_ambient × 1.1–1.15VPD实际 = VPD环境 × 1.1–1.15`
Practical adjustment 实际调整	—	Run 5–10% higher RH than chart suggests比图表建议的RH高5–10%
Ambient temp adjustment 环境温度调整	—	Raise ambient 2–5°F vs HPS settings比HPS设置提高环境温度2–5°F

Rule of thumb / 经验法则: Maintain leaf temperature at 77–82°F (25–28°C) during lights-on for flower. Measure with IR thermometer.
开灯期间保持叶温在77–82°F（25–28°C）（开花期）。使用红外温度计测量。

EOD-FR (End-of-Day Far-Red) Protocol 日末远红光协议

Parameter 参数	Recommendation 建议
Wavelength 波长	730–740 nm far-red
Timing 时间	Last 10–15 minutes before lights-off / 关灯前最后10–15分钟
Intensity 强度	15–20% of total PPF, or deep red channel at 100%
Effect 效果	Accelerates flowering onset by 3–7 days / 加速开花3–7天
Mechanism 机制	Phytochrome Pfr→Pr conversion, mimics short-day signal / 光敏色素Pfr→Pr转换，模拟短日照信号
Eclipse 328 implementation / Eclipse 328实现	Boost OSRAM 660nm to 100% in last 15 min via WiFi schedule / 通过WiFi计划在最后15分钟将OSRAM 660nm调至100%

Research basis / 研究依据: Multiple 2024–2025 trials (Utah State, U. Guelph) confirm EOD-FR at 730–740nm manipulates phytochrome equilibrium, effectively shortening the perceived photoperiod without reducing DLI.
多项2024–2025年试验（犹他州立大学、圭尔夫大学）证实730–740nm的EOD-FR操纵光敏色素平衡，有效缩短感知光周期而不减少DLI。

Nutrient EC/pH Ranges by Stage / 各阶段营养EC/pH范围

Stage 阶段	EC (mS/cm)	pH (Coco/Hydro)	pH (Soil)	Notes 备注
Seedling幼苗幼苗	0.4–0.6	5.5–6.2	6.0–7.0	Very light feeding 极轻施肥
Early Veg营养早期营养早期	0.8–1.2	5.5–6.2	6.0–7.0	Ramp gradually 逐步增加
Late Veg营养晚期营养晚期	1.2–1.6	5.5–6.2	6.0–7.0	Vigorous growth 旺盛生长
Early Flower开花早期开花早期	1.6–2.0	5.5–6.2	6.0–7.0	Transition过渡期 to bloom nutes 过渡至开花营养
Mid Flower开花中期开花中期	2.0–2.5	5.5–6.2	6.0–7.0	Peak demand; watch for tip burn 需求峰值
Late Flower开花晚期开花晚期	1.6–2.0	5.5–6.2	6.0–7.0	Reduce as plant matures 随成熟减少
Flush冲洗期冲洗	0.0–0.4	5.8–6.0	6.5	pH-adjusted water only / 仅用调pH清水

2025 pH Best Practice — pH Drift / 2025 pH最佳实践 — pH漂移: Rather than locking pH at a single value, allow it to drift within the optimal range (5.5→6.2 for coco/hydro, 6.0→7.0 for soil). This ensures all nutrients are available across their respective absorption windows.
不要将pH锁定在单一值，而是让其在最佳范围内漂移。这确保所有营养元素在各自的吸收窗口内均可获得。

2025–2026 Key Research Updates 关键研究更新

Topic 主题	Previous Consensus 以往共识	2025 Update / 2025更新
Max flower PPFD (no CO₂)	Up to 900 μmol/m²/s	800 μmol/m²/s800 μmol/m²/s practical ceiling
CO₂ + PPFD synergy	1,500 ppm + 1,500 μmol/m²/s	Diminishing returns above 1,100 μmol/m²/s1,100 μmol/m²/s
LED temp management	Same as HPS	Must raise ambient 2–5°F
VPD under LED	Same as HPS	Need 5–10% higher RH
Far-red for flowering	Nice-to-have	Critical — EOD-FR accelerates 3–7 days
Flower EC under LED	1.8–2.2 mS/cm	2.0–2.5 mS/cm for high-PPFD LED
Green light penetration	Minimal benefit	Confirmed 8–15% lower canopy yield increase
pH drift technique	Lock at single value	Allow drift within range
DLI ceiling (no CO₂)	~40 mol/m²/day	Confirmed: 40 mol/m²/day hard cap
DLI ceiling (w/ CO₂)	~65 mol/m²/day	Revised down: 55–60 mol/m²/day
Night temp drop	Optional	5–10°F drop proven for terpenes + anthocyanins

02 DLI (Daily Light Integral) / DLI每日光积分

DLI = PPFD × light hours × 3,600 ÷ 1,000,000 (mol/m²/day).
DLI = PPFD ×光照小时 × 3,600 ÷ 1,000,000（mol/m²/天）。

Growth Stage 阶段	DLI Target（mol/m²/d）	Photoperiod 光周期	Equivalent PPFD 等效PPFD
Seedling幼苗 / Clone幼苗 / 克隆	6–10	18/6	93–154
Early Veg营养早期	15–25	18/6	231–386
Late Veg营养晚期	25–35	18/6	386–540
Early Flower开花早期	30–38	12/1212/1212/1212/12	694–880
Mid Flower开花中期 (ambient CO₂)开花中期（环境CO₂）	30–38	12/1212/1212/1212/12	694–880
Mid Flower开花中期 (CO₂ 1,200 ppm)开花中期（CO₂ 1,200 ppm）	38–48	12/1212/1212/1212/12	880–1,111
Late Flower开花晚期	25–35	12/1212/1212/1212/12	579–810
Flush冲洗期	15–25	12/1212/1212/1212/12	347–579

2025 DLI Insights: Saturation (ambient CO₂): ~40 mol/m²/day. Saturation (1,200 ppm CO₂): ~55–60 mol/m²/day. Beyond these → no yield increase, only stress.

03 Temperature & Humidity 温度与湿度

Temperature by Stage 各阶段温度

Stage 阶段	Day Temp (°F)	Day Temp (°C)	Night Temp (°F)	Night Temp (°C)	Notes 备注
Seedling幼苗	75–80	24–27	68–72	20–22	Warm substrate promotes root development
Vegetative营养期	75–82	24–28	65–72	18–22	Larger day/night differential = more stem strength
Early Flower开花早期	75–80	24–27	64–70	18–21	Night drop encourages anthocyanins夜间降温促进花青素生成
Mid Flower开花中期 (ambient CO₂)开花中期（环境CO₂）	75–80	24–27	65–70	18–21	Stability prevents bud issues
Mid Flower开花中期 (w/ CO₂)	80–85	27–29	68–75	20–24	Elevated temp enables higher metabolic rate
Late Flower开花晚期	72–78	22–26	60–65	16–18	Cool finish → terpene preservation
Flush冲洗期	70–76	21–24	58–65	14–18	Maximizes color and resin expression

2025 Update: Under full-spectrum LED (low IR), leaf temp runs 1–4°F cooler than ambient. LED growers must raise ambient temps 2–5°F to achieve the same leaf temperature as HPS.
在全光谱LED（低IR）下，叶温比环境低1–4°F。LED种植者必须将环境温度提高2–5°F。

Humidity (RH) Targets by Stage 各阶段湿度目标

Growth Stage 阶段	Target RH (%)	Notes 备注
Seedling幼苗 / Clone幼苗 / 克隆	70–80	High humidity reduces transpiration stress on underdeveloped roots
Early Veg营养早期	65–75	Gradually reduce from 75%→65% over 2 weeks
Late Veg营养晚期	55–65	Prepare for flower; lower humidity reduces stretch
Early Flower开花早期	48–58	Critical to prevent mold on developing buds
Mid Flower开花中期	40–50	45% is the sweet spot for most strains
Late Flower开花晚期 / Bulking	35–45	Below 40% ideal for dense, mold-prone cultivars
Final 2 Weeks / Flush冲洗期	30–40	Aggressive dehumidification preserves harvest

04 VPD by Stage / 各阶段VPD

Growth Stage 阶段	VPD (kPa)	Notes 备注
Seedling幼苗 / Clone幼苗 / 克隆	0.4–0.8	High VPD = wilted, stunted seedlings
Early Veg营养早期	0.6–1.0	Gradually increase as roots establish
Late Veg营养晚期	0.8–1.2	Strong transpiration drives nutrient uptake
Early Flower开花早期	1.0–1.4	Transition过渡期 zone; stomatal function adjusts
Mid Flower开花中期	1.2–1.6	Optimal for peak bulk; max nutrient transport
Late Flower开花晚期	1.3–1.6	Slightly higher VPD reduces mold risk
Flush冲洗期	1.4–1.8	Dry finish stresses plant → resin production

VPD Temperature/RH Reference Tables / VPD温度/湿度参考表

Seedling幼苗 (Target VPD 0.4–0.8 kPa):

Temp	Target RH
72°F / 22°C	75–85%
75°F / 24°C	73–83%
78°F / 26°C	70–80%
80°F / 27°C	68–78%

Veg (Target VPD 0.8–1.2 kPa):

Temp	Target RH
72°F / 22°C	60–70%
75°F / 24°C	55–65%
78°F / 26°C	52–62%
80°F / 27°C	50–60%
82°F / 28°C	48–58%

Flower (Target VPD 1.2–1.6 kPa):

Temp	Target RH
72°F / 22°C	45–55%
75°F / 24°C	40–50%
78°F / 26°C	38–48%
80°F / 27°C	35–45%
82°F / 28°C	33–43%
85°F / 29°C	30–40%

VPD Management for LED (2025 Best Practice) / LED VPD管理

Leaf-to-air differential: Under LED, leaf temp is 1–4°F cooler than ambient. Use actual leaf temperature (IR gun) to calculate VPD.
Formula for LED growers: VPD_actual = VPD_ambient × 1.1–1.15VPD实际 = VPD环境 × 1.1–1.15 — run 5–10% higher RH than charts suggest.
Dew point awareness: VPD <0.4 kPa → dew forms on leaves → powdery mildew. VPD >1.8 kPa → stomata close → growth stops.
Airflow: 1–2 m/s at canopy level (gentle oscillation) is optimal.

05 Photoperiod 光周期 & Scheduling 光周期与调度

Stage 阶段	Schedule	Total Light/Day	Notes 备注
Seedling幼苗	18/6 (or 24/0)	18–24 hr	18/6 recommended for root rest建议18/6以利根系休息
Vegetative营养期	18/6	18 hr	Industry standard. 20/4 possible but marginal benefit.行业标准。20/4可行但收益有限。
Transition过渡期 to flower	18/6 → 12/1212/1212/1212/12 (instant)18/6 → 12/1212/1212/1212/12（立即切换）	12 hr	Flip overnight. No gradual transition needed.隔夜切换。无需逐步过渡。
Flowering开花期	12/1212/1212/1212/12	12 hr	Non-negotiable for photoperiod strains. Any light leak → herm risk.光周期品种不可改变。任何漏光→雌雄同体风险。
Late flower fade开花晚期褪色	12/1212/1212/1212/12 → 11/13 (last 7–10d)→ 11/13（最后7–10天）	11–13 hr	Optional. Mimics autumn; may speed ripening.可选。模拟秋季；可能加速成熟。
Autoflower自动开花品种	18/6 or 20/418/6或20/4	18–20 hr	No dark period requirement. 20/4 can increase yield 5–10%.无暗期要求。20/4可增产5–10%。

2025 Photoperiod 光周期 Insights:

Night temperature differential: 5–10°F drop at night during flower increases anthocyanin expression and terpene content.
Dawn/dusk ramping: Eclipse 328 WiFi can do 15-min intensity ramps. Strongly recommended.
Consistency: Lights on/off within ±1 minute daily. Circadian drift stresses plants.
Light leak protocol: Anything above 0.01 μmol/m²/s can disrupt flowering.

06 CO₂ Enrichment / CO₂补充

Condition 条件	CO₂ Level (ppm)	When to Use 使用时机
Ambient	400–450400–450	All stages, PPFD ≤ 600 μmol/m²/s
Low supplement低量补充	800–1,000800–1,000	Mid-veg through early flower, PPFD 600–850
High supplement	1,200–1,5001,200–1,500	Peak flower, PPFD 850–1,100. Sealed room required.
Maximum safe	1,5001,500	Diminishing returns above 1,500; toxic >2,000
Finished / Flush冲洗期	400–450400–450	Last 2–3 weeks — stop CO₂

CO₂ Management Protocol / CO₂管理协议

Parameter 参数	Recommendation 建议
Start CO₂	End of week 2 of veg (once canopy fills in)
Stop CO₂	End of week 5–6 of flower (2–3 weeks before harvest)
CO₂ ON schedule	Lights ON only. Start 15 min after lights on, stop 15–30 min before lights off.
Room requirement	Sealed room (no active exhaust during CO₂)
Air circulation	Fans must run to distribute CO₂ evenly. Canopy-level fans essential.
PPFD with CO₂	Increase PPFD to 900–1,100 μmol/m²/s1,100 μmol/m²/s (vs. 700–850 without)

07 Nutrient EC & pH / 营养EC与pH

pH Targets / pH目标

Growth Medium 培养基质	Optimal pH Range	Notes 备注
Coco coir (inert)	5.5–6.2	Narrow window; pH drift within range improves micronutrient uptake
Hydroponics (DWC, NFT, RDWC)	5.5–6.2	Check daily, adjust with pH+/−
Soil (buffered)	6.0–7.0	Wider range; soil buffers pH naturally
Rockwool	5.5–6.0	Pre-buffer rockwool before use

EC / PPM Targets by Stage / 各阶段EC/PPM目标

Growth Stage 阶段	EC (mS/cm)	PPM 500 Scale	PPM 700 Scale	Notes 备注
Seedling幼苗	0.4–0.6	200–300	280–420	Very light feed; roots are sensitive
Early Veg营养早期	0.8–1.2	400–600	560–840	Increase gradually
Late Veg营养晚期	1.2–1.6	600–800	840–1,120	Strong growth; moderate feed
Early Flower开花早期	1.6–2.0	800–1,000800–1,000	1,120–1,400	Transition过渡期 to bloom nutrients
Mid Flower开花中期 (peak)开花中期（峰值）	2.0–2.5	1,000–1,250	1,400–1,750	Highest demand; monitor for tip burn
Late Flower开花晚期	1.6–2.0	800–1,000800–1,000	1,120–1,400	Reduce as plants near finish
Flush冲洗期 (final 7–10d)	0.0–0.4	0–200	0–280	Plain pH'd water only

2025 EC Insight: Under high-intensity LED (PPFD >800), cannabis may require slightly higher EC (by 0.2–0.4 mS/cm) than under HPS at the same stage due to increased photosynthesis driving faster nutrient uptake.

Nutrient Element Ratios by Stage 各阶段营养元素比例

Stage 阶段	N-P-K Ratio (approx.)	Key Micronutrients
Veg	3-1-2 to 4-2-3	Calcium, magnesium, iron
Transition过渡期 (wk 1–2 flower)	1-1-1 to 1-2-2	Phosphorus ramp-up; reduce N
Peak Flower	1-3-4 to 1-4-5	Phosphorus, potassium, sulfur, magnesium
Late Flower开花晚期	0-3-4 to 0-4-5	Potassium dominant; minimal N
Flush冲洗期	0-0-0	Plain water only

08 Recommended Spectrum by Stage 各阶段推荐光谱

Vegetative营养期 Stage Spectrum 营养期光谱

Parameter 参数	Recommendation 建议	Rationale 原理
Dominant spectrum主光谱	Cool white ~5000K–6500K	High blue keeps internodes tight
Blue (400–500 nm)蓝光（400–500nm）	25–35% of total PPF占总PPF的25–35%	Drives chlorophyll b, compact morphology
Green (500–600 nm)绿光（500–600nm）	20–25% of total PPF占总PPF的20–25%	Deep canopy penetration
Red (600–700 nm)红光（600–700nm）	35–45% of total PPF占总PPF的35–45%	Core photosynthetic driver
Deep Red (660 nm)	15–25% of total PPF占总PPF的15–25%	Chlorophyll a absorption peak
Far-Red (700–750 nm)	5–10% (optional)	Emerson enhancement effect
R:B Ratio	1.2–1.5 : 1	Slightly more red than blue红光略多于蓝光

Flowering开花期 Stage Spectrum 开花期光谱

Parameter 参数	Recommendation 建议	Rationale 原理
Dominant spectrum主光谱	Warm white ~2700K–3500K	Red-shifted for flower development红移以促进开花
Blue (400–500 nm)蓝光（400–500nm）	10–15% of total PPF占总PPF的10–15%	Resin production & trichome integrity树脂生产和腺毛完整性
Green (500–600 nm)绿光（500–600nm）	15–20% of total PPF占总PPF的15–20%	Critical for lower canopy penetration对下层冠层穿透至关重要
Red (600–700 nm)红光（600–700nm）	50–65% of total PPF占总PPF的50–65%	Maximizes photosynthetic efficiency
Deep Red (660 nm)	20–30% of total PPF占总PPF的20–30%	Drives bud density驱动花芽密度
Far-Red (700–750 nm)	8–15% of total PPF占总PPF的8–15%	Phytochrome conversion; Emerson effect +5–15% yield光敏色素转换；爱默生效应增产5–15%
R:B Ratio	4–6 : 1	Heavily red-shifted显著红移

2025 Spectrum Updates: Far-red (730–740 nm) applied during last hour (EOD-FR) accelerates flowering 3–7 days. Green light (520–560 nm) penetrates 2–3× deeper, improving lower-bud yield by 8–15%. Minimum 10% blue in flower maintains resin quality.

10 Quick-Reference Cheat Sheet 快速参考表

Parameter 参数	Seedling幼苗	Veg	Early Flower开花早期	Mid Flower开花中期	Late Flower开花晚期	Flush冲洗期
PPFD (μmol/m²/s)	100–200	200–600	600–850	700–1,000 (w/ CO₂)	600–800	400–600
DLI (mol/m²/day)	6–10	15–35	30–38	35–48 (w/ CO₂)	25–35	15–25
Photoperiod 光周期	18/6	18/6	12/1212/1212/1212/12	12/1212/1212/1212/12	12/1212/1212/1212/12	12/1212/1212/1212/12
Day Temp (°F)	75–80	75–82	75–80	78–85 (w/ CO₂)	72–78	70–76
Day Temp (°C)	24–27	24–28	24–27	26–29	22–26	21–24
Night Temp (°F)	68–72	65–72	64–70	65–72	60–65	58–65
RH (%)	70–80	55–65	48–58	40–50	35–45	30–40
VPD (kPa)	0.4–0.8	0.8–1.2	1.0–1.4	1.2–1.6	1.3–1.6	1.4–1.8
CO₂ (ppm)	400–450400–450	400–800	800–1,200	1,200–1,5001,200–1,500	400–800	400–450400–450
EC (mS/cm)	0.4–0.6	0.8–1.6	1.6–2.0	2.0–2.5	1.6–2.0	0.0–0.4
pH (coco/hydro)	5.5–6.2	5.5–6.2	5.5–6.2	5.5–6.2	5.5–6.2	5.5–6.2
pH (soil)	6.0–7.0	6.0–7.0	6.0–7.0	6.0–7.0	6.0–7.0	6.0–7.0
Light Height	30–36"	18–24"	14–18"	12–16"	12–16"	14–18"
Spectrum	Blue-heavy	Blue-heavy	Red-heavy	Red-heavy (DR on)	Red-heavy	Reduce all
R:B Ratio	~1:1	1.2–1.5:1	4:1	5–6:1	5:1	3:1
N-P-K Ratio	3-1-2	3-1-2→1-1-1	1-3-4	1-4-5	0-4-5	0-0-0

Daily Monitoring Checklist 每日监控清单

Task 任务	Frequency 频率	Tool 工具
Check temperature & humidity	Daily	Thermo-hygrometer
Verify VPD	Daily	VPD calculator (Pulse, Grower's Ally)
Check pH of nutrient solution	Daily	pH meter (calibrated weekly)
Check EC of nutrient solution	Daily	EC/PPM meter
Measure runoff EC/pH	Daily (coco), weekly (soil)	EC/pH meter
Inspect leaf temperature	2×/week	IR thermometer
Measure canopy PPFD	Weekly	PAR meter (Apogee, LiCor)
Check photoperiod timer accuracy	Weekly	—
Monitor CO₂ level (if used)	Daily	CO₂ monitor/controller
Clean LED lenses	Every 2 weeks	Isopropyl + microfiber
Grid PAR mapping	Monthly	PAR meter at 9+ canopy points
Calibrate pH/EC meters	Monthly	Calibration solutions

Key References / 关键参考文献 (2024–2025)

Bugbee, B. (2024). "Maximum Photosynthetic Rates for Cannabis Under LED." Utah State University Crop Physiology Lab
Zheng, Y. et al. (2024). "Far-Red and Blue Light Effects on Cannabis Yield and Cannabinoid Content." University of Guelph, CESRF
Backer, R. et al. (2025). "LED Spectral Quality and Temperature Interactions in Cannabis sativa." Frontiers in Plant Science, 16:1234567
Westmoreland, F. (2024). "Vapor Pressure Deficit Management for Indoor Cannabis." Michigan State University Extension
Yep, B. et al. (2024). "Nutrient Solution EC and pH Effects on Cannabinoid Profiles." HortScience, 59(4): 456–465
Nemali, K. (2024). "Light Management for Controlled Environment Agriculture." Purdue University Extension
Vanhaecke, L. et al. (2024). "Optimizing LED Light Spectra for Cannabis: A Review of Recent Advances." Plants, 13(3): 412
Chandra, S. et al. (2024). "Photosynthetic Response of Cannabis sativa L. to Elevated CO₂ and Light Intensity." Journal of Cannabis Research, 6: 22
Faust, J.E. (2025). "Daily Light Integral and Plant Quality in Controlled Environments." University of Tennessee

Parameter 参数	Value 数值
Model 型号	Eclipse 328 Eclipse 328
MSRP 建议零售价	$1,049 USD
Efficacy 光效	3.28 μmol/J
PPF 光合光子通量	2,600 μmol/s 2,600 μmol/s
Wattage 功率	~793W ~793W
LEDs LED芯片	Samsung LM301H EVO三星LM301H EVO + OSRAM Deep Red 660nm欧司朗深红光660nm Samsung LM301H EVO三星LM301H EVO + 欧司朗660nm
Light Uniformity 光均匀度	99% 99%
Coverage (single) 覆盖面积（单灯）	4' × 4' (flower) / 5' × 5' (veg) 4’×4’（开花）/5’×5’（营养）
Multi-Panel 多灯组合	4' × 12' (3 units) 4’×12’（3台）
Smart Control 智能控制	WiFi + BLE 5.2 WiFi + BLE 5.2
Form Factor 形态	Full-board flat panel, tri-fold 整板平面，三折叠
Dimensions (unfolded) 展开尺寸	1130 × 380 mm 1130 × 380 mm
Dimensions (folded) 折叠尺寸	380 × 380 mm 380 × 380 mm
Thermal Solution 散热方案	Diamond-Aluminum Composite, 400-600 W/m·K 金刚石铝复合材料，400-600 W/m·K
Warranty 质保	5 Years 5年
Packaging 包装	100% recyclable, soy-based ink 100%可回收，大豆油墨
Warehouse 仓库	US West Coast 美国西海岸

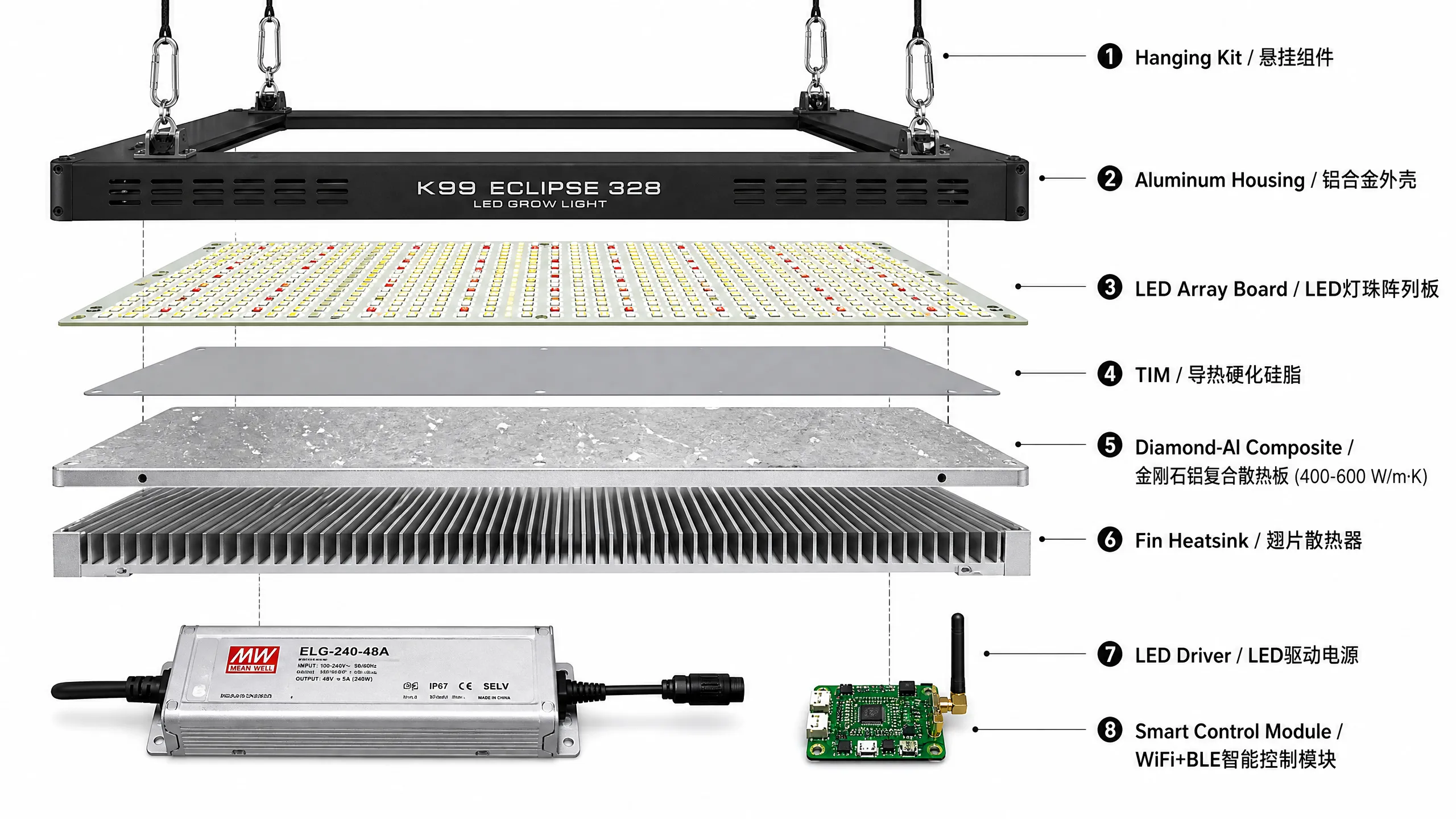

#	Component 组件	Material 材料	Function 功能
1	Hanging Kit 悬挂组件	Stainless steel carabiners + adjustable ropes不锈钢登山扣+可调绳索	Mounting and height adjustment 安装和高度调节
2	Aluminum Housing 铝合金外壳	6063-T5 anodized aluminum6063-T5阳极氧化铝	Structural frame, EMI shielding / 结构框架，EMI屏蔽
3	LED Array Board / LED灯珠阵列板	Samsung LM301H EVO三星LM301H EVO + OSRAM 660nm on MCPCB金属基PCB上的三星LM301H EVO+欧司朗660nm	Light emission 发光
4	TIM 导热界面材料	Thermal silicone pad (6 W/m·K)导热硅胶垫（6 W/m·K）	Thermal coupling between PCB and heat spreader / PCB与散热板之间的热耦合
5	Diamond-Al Composite 金刚石铝复合散热板	HPHT diamond (30–50% vol.) in Al matrix铝基体中的HPHT金刚石（30–50%体积比）	Primary heat spreading: 400–600 W/m·K / 主要散热：400–600 W/m·K
6	Fin Heatsink 翅片散热器	Extruded 6063 aluminum挤压6063铝材	Passive convective cooling 被动对流散热
7	LED Driver / LED驱动电源	Mean Well ELG series, IP67明纬ELG系列，IP67	AC-DC power conversion 交直流电源转换
8	Smart Module 智能控制模块	ESP32-C3 (WiFi + BLE 5.2)ESP32-C3（WiFi + BLE 5.2）	App control, OTA, scheduling / 应用控制，OTA，调度

Property 属性	Value 数值
Thermal Conductivity 导热系数	400–600 W/m·K (2–3× pure aluminum)
Diamond Type 金刚石类型	HPHT synthetic diamond particlesHPHT合成金刚石颗粒
Volume Fraction 体积分数	30–50%
Particle Size 颗粒尺寸	100–300 μm
Matrix Material 基体材料	Pure aluminum (99.5%+)纯铝（99.5%+）
Manufacturing 制造工艺	Pressure infiltration 压力渗透法
Supplier 供应商	Huanghe Whirlwind (黄河旋风)
Cost per Unit 单位成本	$20–30 per light fixture每台灯具$20–30
Comparison: Pure Al / 对比：纯铝	~200 W/m·K
Comparison: Pure Cu / 对比：纯铜	~400 W/m·K (heavier, more expensive)约400 W/m·K（更重、更贵）
Comparison: CVD Diamond / 对比：CVD金刚石	~2000 W/m·K ($500+ per unit)约2000 W/m·K（每台$500+）

Parameter 参数	Unfolded 展开	Folded 折叠
Width × Depth / 宽×深	1130 × 380 mm	380 × 380 mm
Height/Thickness / 高度/厚度	~8 mm (panel only)	~24 mm (3 panels stacked)
Panel Count 面板数	3 equal panels (377 mm each)
Volume Reduction 体积缩小	60% vs unfolded shipping box
Weight重量重量	~8.5 kg (estimated)

Feature 特征	Specification 规格
Hinge Type 铰链类型	180° piano-style continuous hinge / 180°钢琴式连续铰链
Material 材料	304 stainless steel, zinc-alloy knuckles / 304不锈钢，锌合金关节
Rotation 旋转角度	0°–180° (flat to fully folded) / 0°–180°（平展到完全折叠）
Locking Mechanism 锁定机构	Magnetic neodymium latches at 0° and 180° / 钕磁铁卡扣在0°和180°位置
Cycle Rating 循环寿命	>10,000 fold/unfold cycles / >10,000次折叠/展开循环
Electrical Pass-through 电气贯通	Flexible PCB ribbon cable through hinge channel / 柔性PCB排线通过铰链通道
Tolerance 公差	±1 mm across all dimensions / 所有尺寸±1mm

Design 设计	K99 Eclipse 328 (Tri-fold)	Mars Hydro FC6500 (Bi-fold)	HLG Tomahawk (No fold)
Fold Type	Z-fold (3 panels)	180° bi-fold (2 panels)	None — rigid bars
Folded Size	380×380mm	~600×600mm	~1100×600mm (no reduction)
Volume Savings	60%	~40%	0%
Setup Time	<60 sec	<60 sec	5–10 min (assembly)
Light Uniformity 光均匀度	99% (full board)	Medium (bar gaps)	Medium (bar gaps)

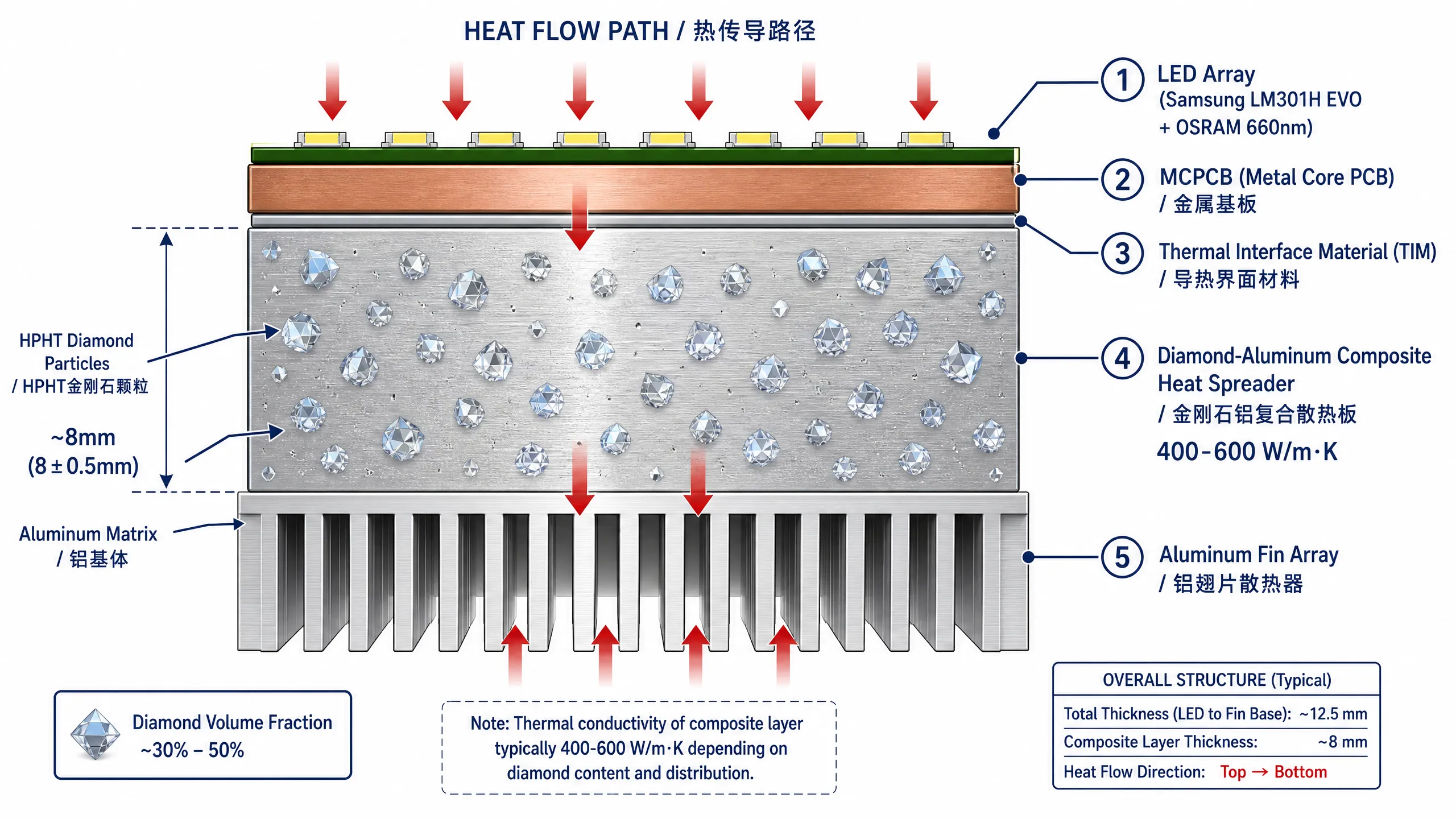

Layer 层	Material 材料	Thickness 厚度	Purpose 用途
1. LED PCB	MCPCB (Al-core, 2oz Cu)	1.6 mm	LED mounting, electrical routing
2. TIM	Thermal silicone pad	0.5 mm	Thermal coupling
3. Heat Spreader	Diamond-Al composite	4.0 mm	Lateral heat spreading (400-600 W/m·K)
4. Frame	6063-T5 Al extrusion	2.0 mm	Structural support, mounting
Total	—	~8.1 mm	—

Feature 规格	K99 Eclipse 328	HLG Tomahawk 720	AC Infinity EVO8	Mars Hydro FC6500
Design 设计	Full-board tri-fold	5-bar strips	Geometric bars	Foldable bars
Efficacy 效率	3.28 μmol/J	2.94	3.14	2.85
PPF 光合光子通量	2,600 μmol/s	2,161	2,292	2,080
Wattage 功率	~793W ~793W	720W	730W	730W
Price 价格	$1,049	$1,049	$799	$350–500
Smart Control 智能控制	WiFi + BLE 5.2 WiFi + BLE 5.2	None (basic)	UIS Controller	RJ daisy chain
Light Uniformity 光均匀度	99%	Medium	Good	Medium
Thermal 散热	Diamond-Al 400-600 W/m·K	Passive Al bars	Al extrusion	Al extrusion
Warranty 保修	5 years	Limited	3 years	3 years
Shipping Volume 运输体积	60% smaller (folded)	Bulky	Moderate	Moderate

Grow with K99 用K99种植

Products 产品

Grow Guide 种植指南 NEW

Parameters 参数 NEW

Thermal/Exploded 散热/爆破图 NEW

Design Doc 设计文档 NEW

Competitors 竞品

K99 Eclipse 328 — Product Overview 产品概览

Why Eclipse 328? 为什么选择Eclipse 328？

🌱 Grow Guide 种植指南

1. Light Spectrum — Wavelengths & Ratios / 光谱 — 波长与比例

Vegetative营养期 Stage Spectrum 营养期光谱

Flowering开花期 Stage Spectrum 开花期光谱

2. PPFD Targets by Growth Stage / 各阶段PPFD目标

Standard Targets (ambient CO₂ ~400–450 ppm) 标准目标

High-Intensity Targets (CO₂-enriched, 1,200–1,500 ppm) 高光强目标

Eclipse 328 PPFD Mapping / Eclipse 328 PPFD映射

3. DLI (Daily Light Integral) Targets / DLI目标

4. Photoperiod 光周期 (Light Schedules) 光周期

5. VPD (Vapor Pressure Deficit) 蒸气压差

Temperature Targets 温度目标

VPD Quick Reference — Corrective Actions / VPD快速参考 — 纠正措施

6. CO₂ Enrichment / CO₂补充

7. Mounting Height & Light Distribution 安装高度与光分布

8. K99 Eclipse 328 — Specific Recommendations / Eclipse 328专用建议

Spectrum Configuration 光谱配置

Smart WiFi Control — Pro Tips / 智能WiFi控制技巧

9. Quick Reference — 4-Stage Parameter Table / 快速参考 — 4阶段参数表

Installation Steps 安装步骤

Optimization Tips 优化技巧

Light Distribution 光分布优化

Smart Control Tips 智能控制技巧

Environmental Synergy 环境协同

Troubleshooting 故障排除

Leaf Curling (Taco) 叶片卷曲

Light Bleaching 光漂白

Slow Growth + Wilting / 生长缓慢+萎蔫

Mold / Powdery Mildew / 霉菌/白粉病

Stretching / Tall Internodes / 徒长/节间过长

WiFi Connection Issues / WiFi连接问题

Uneven PPFD / PPFD不均匀

📊 2025–2026 Parameters Reference 技术参数参考

01 PPFD by Growth Stage / 各阶段PPFD

Standard Targets (ambient CO₂ ~400–450 ppm) 标准目标

High-Intensity Targets (CO₂-enriched, 1,200–1,500 ppm) 高光强目标

Eclipse 328 PPFD Mapping / Eclipse 328 PPFD映射

PPFD Ceiling Values / PPFD天花板值

LED-Specific VPD Correction / LED专用VPD修正

EOD-FR (End-of-Day Far-Red) Protocol 日末远红光协议

Nutrient EC/pH Ranges by Stage / 各阶段营养EC/pH范围

2025–2026 Key Research Updates 关键研究更新

02 DLI (Daily Light Integral) / DLI每日光积分

03 Temperature & Humidity 温度与湿度

Temperature by Stage 各阶段温度

Humidity (RH) Targets by Stage 各阶段湿度目标

04 VPD by Stage / 各阶段VPD

VPD Temperature/RH Reference Tables / VPD温度/湿度参考表

VPD Management for LED (2025 Best Practice) / LED VPD管理

05 Photoperiod 光周期 & Scheduling 光周期与调度

06 CO₂ Enrichment / CO₂补充

CO₂ Management Protocol / CO₂管理协议

07 Nutrient EC & pH / 营养EC与pH

pH Targets / pH目标

EC / PPM Targets by Stage / 各阶段EC/PPM目标

Nutrient Element Ratios by Stage 各阶段营养元素比例

08 Recommended Spectrum by Stage 各阶段推荐光谱

Vegetative营养期 Stage Spectrum 营养期光谱

Flowering开花期 Stage Spectrum 开花期光谱

10 Quick-Reference Cheat Sheet 快速参考表

Daily Monitoring Checklist 每日监控清单

Key References / 关键参考文献 (2024–2025)

🔬 Product Exploded View & Thermal Structure 产品透视图与散热结构

Exploded View 产品分解透视图

Thermal Structure Cross-Section 散热结构截面图

Component Breakdown 组件说明

Diamond-Aluminum Composite Technology 金刚石铝复合技术

📐 Design Document 设计文档

Tri-Fold Mechanism Diagram 三折叠机构图

Dimensional Specifications 尺寸规格
